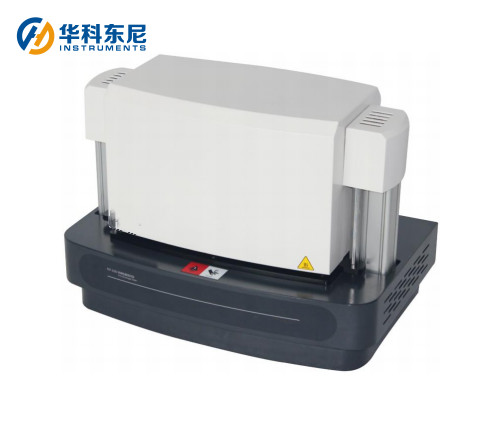

ISO 14616 DIN 53369 Film Shrinkage Tester 100N

Name: ISO 14616 DIN 53369 Film Shrinkage Tester 100N
Brand: HUST Tony
Price: 1 USD

Brand Name : HUST Tony

Model Number : HTZ-031B

Place of Origin : Guangdong,China(Mainland)

MOQ : 1 set

Price : contact saler

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 sets per month

Delivery Time : 15 working days

Packaging Details : Plywood BOX

Iterm : Film Shrinkage Test Equipment

Certificate : ISO 14616, DIN 53369

Contact Now

Application :

This instrument is suitable for the highly accurate and digital measurement of heat shrinking force, shrinkage ratio and contracting force of various heatshrinkable films. Usually film samples include stretch film, blown film, shrink wrap, battery separation membranes, etc

Technical indexes

1. Force Range: 100N(STD)
2. Force Accuracy: 0.05%FSMAX
3. Shrinkage Ratio: 100mm
4. Shrinkage Ratio Accuracy: 0.1mm
5. Hood Temperature: room temperature~260℃
6. Temperature Accuracy: ±0.3℃
7. Sample Size: width: 15mm; length: >100mm
8. Work Station: 3, independent
9. Gas Resource: 0.1MPa-0.8MPa(air; free oil, water and dust)
10. Gas Interface: Ф8mm
11. Dimension: 590mm(L)x385mm(W)x435mm(H)
12. Power Supply: AC 220V 50Hz (others optional)
13. Net Weight: 61kg

Standard

ISO 14616, DIN 53369

Features

One-click test, test results will automatically display on the screen.
Built-in 3 test stations, each station can independently complete the shrinkage force, contracting force and shrinkage ratio test.
Force curves and ratio curves display with single and multiple display technology.
Highly accurate shrinkage ratio test relies on our exclusive patent technology.
Oil free operation, no contamination.
Built-in embedded system, easy to remote maintenance and upgrades.

accessories:

Standard: Mainframe, Computer, PCIE Card, F-Shrinkage Computer Software,

Communication Cable, Precision Pressure Regulator, Sample Cutter(15mm)

Optional : Gas Super Filter, Printer
